#005 Geneva Movement
Jump to Definition Key Facts View in 3D Mechanical Library Display Images Videos 3D Printing Lego Library Research

Definition

A Geneva movement (also called a Maltese cross mechanism) is a precision mechanical system that transforms continuous rotational motion into intermittent rotational motion, making it essential in devices requiring periodic movement like film projectors, mechanical watches, and automated assembly machines.

The mechanism consists of a driving wheel with a pin that engages with slots in a driven wheel (the Maltese cross), creating precise, jerky rotational intervals where the driven wheel remains stationary for periods before making quick, controlled movements when engaged by the driving wheel's pin. periodic movement like film projectors, mechanical watches, and automated assembly machines.

Key Facts

  • They provide excellent positional accuracy with minimal backlash, making them ideal for precise indexing operations.
  • The system is self-locking when not being driven, preventing unwanted movement and providing stability during rest periods
  • Engineers can adjust the ratio of motion-to-dwell time by modifying the number of slots in the driven wheel, with more slots creating shorter movements and longer rest periods.
  • The mechanism can withstand a surprising amount of strain, and can be made extremely small, as seen in watches. However, it is often contained in oil to guard against friction.

View in 3D

iPhone Augmented Reality Viewer

Display

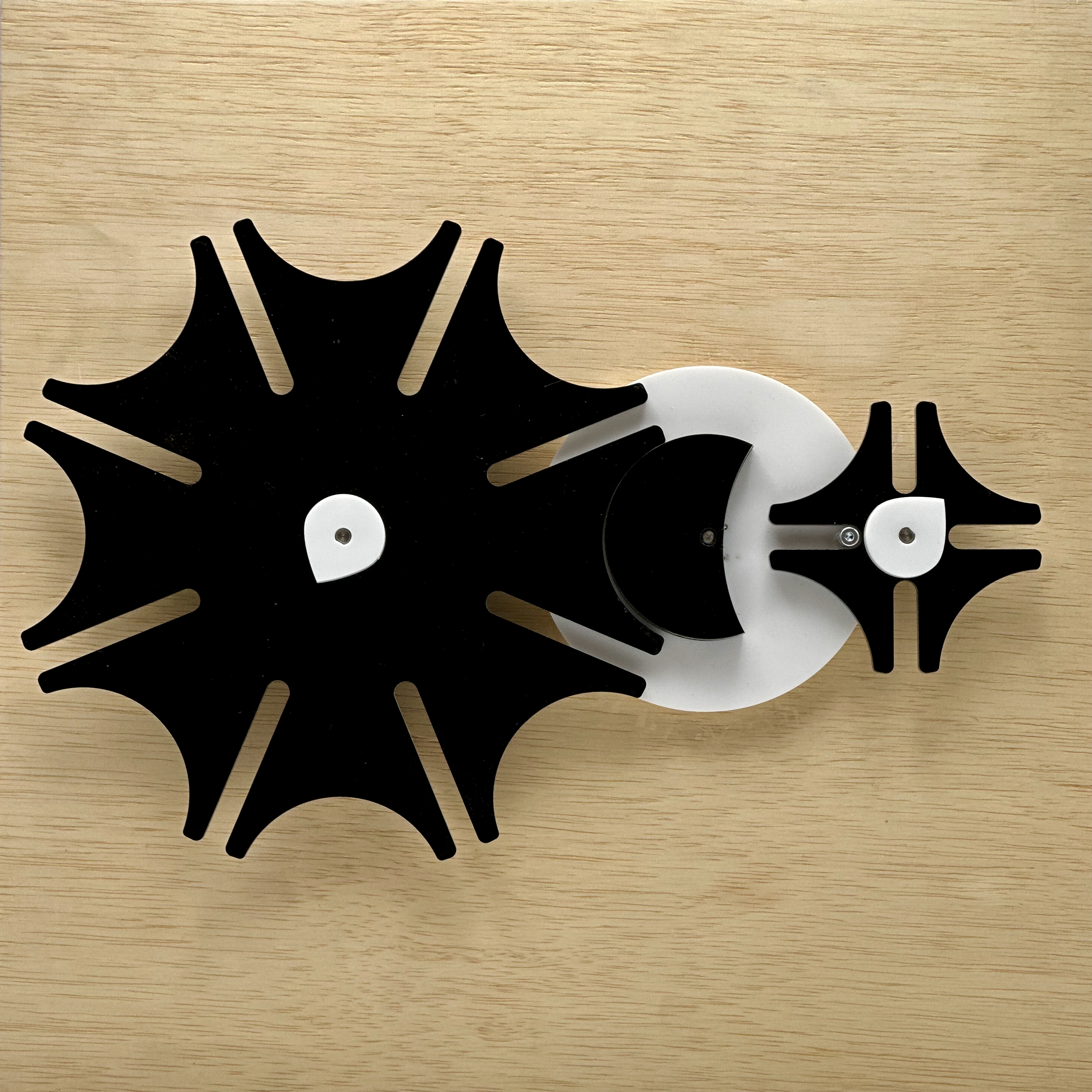

This model demonstrates a central white driving wheel with a metal pin that moves a 4 slot geneva mechanism, typically known as a Maltese cross and an 8 slot geneva mechanism on the left. The 4 slot turns 90 degrees at every rotation, the 8 slot turns 45 degrees.

Video of Geneva Mechanism display in Mechanical Library (Note part appears to jump due to video edit)
Source: mechanical-library.org
Animation of Geneva Mechanism display in Mechanical Library
Source: mechanical-library.org

Videos

Geneva Mechanism or Maltese Cross both External, Internal and Variations
Amazing maltese cross mechanism
Mechanical Watch with Maltese Cross Stop Work
The Geneva Mechanism
How to Draw a Geneva Mechanism in Fusion 360
Geneva Mechanism / Geneva Drive & How a Film Projector Works

3D Printing

Four slotted geneva mechanism
Four slotted geneva mechanism
six slotted geneva mechanism
6 slot Geneva Mechanism
8 slotted geneva mechanism
Geneva (Maltese Cross) Indexing Wheel Assembly (8 slots)
Drawing Geneva Wheel and the Drive Wheel
Make Geneva Wheels of Any Size in a Easier Way
Source: iGreeny on instructables.com
Drawing Geneva Wheel and the Drive Wheel
Laser Cut Flat Pack Version
Source: iGreeny on instructables.com
Digital Geneva Clock
Digital Geneva Clock
Source: shiura on instructables.com

Images

Photo of Geneva Mechanism display in Mechanical Library
Geneva Mechanism display in Mechanical Library
Source: mechanical-library.org

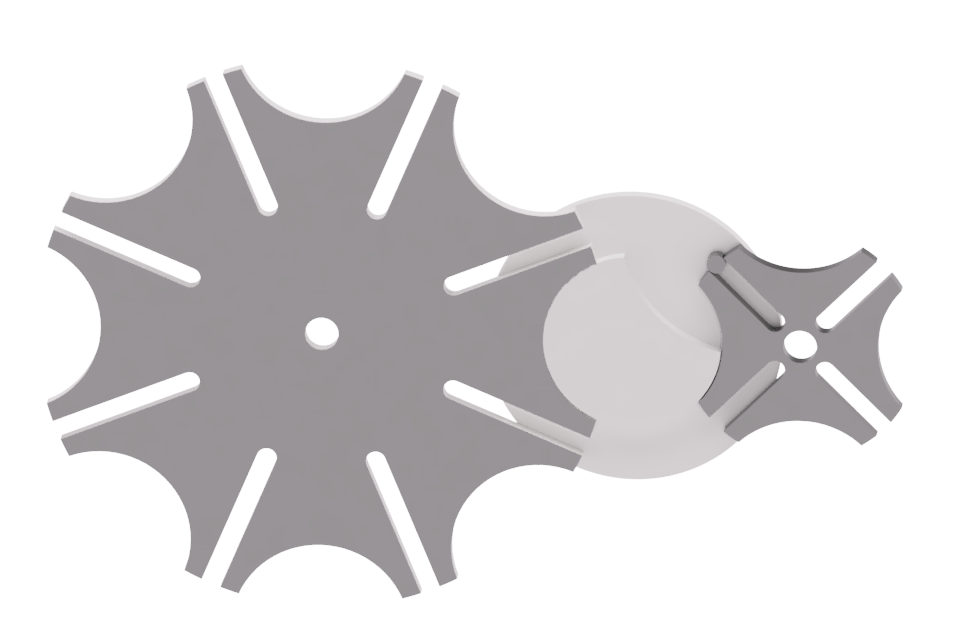

Rendering of Geneva Mechanism display in Mechanical Library
Geneva Mechanism display in Mechanical Library
Source: mechanical-library.org
Geneva Movement model
Movie projector with hand crank and Geneva drive
Source: M_H.DE via wikipedia.org
Movie projector with hand crank and Geneva drive
Movie projector with hand crank and Geneva drive
Source: M_H.DE via wikipedia.org

Mechanism in Legos

Geneva Drive in Lego Technic
Amazing marble loader using Geneva Drive in Lego Technic
LEGO Geneva Drive
3 Ways to Build a LEGO Geneva Mechanism

Reconstructing the Library Display

The library display is composed of

  • (1) Custom cut 1/2" plywood panel (400mm x 400mm)
  • (1) Custom laser cut 1/4" acrylic driving wheel
  • (1) Custom laser cut 1/4" acrylic 4 slot Geneva wheel
  • (1) Custom laser cut 1/4" acrylic 8 slot Geneva wheel
  • (1)20mm(approx) long 6mm D shaft
  • (3) Flanged Ball Bearing (6mm)
  • (1)custom 3mm to 6mm d shaft adapter
  • (1) G12-N20 5vDC Mini Metal Gear Motor 30RPM
  • (1) 1120 Series U-Channel (1 Hole, 48mm Length)
  • Various M4 screws
